Small but powerful.
The new LEWA triplex G3E process diaphragm pump.
With an impressive hydraulic power of 10 kW the LEWA triplex G3E sets entirely new standards in pump technology. Thanks to its robust monoblock design, it can run at speeds of up to 350 spm and requires 30% less space, making it perfect for fuel gas supply systems on ships and any other application with space restrictions.
Benefits in detail

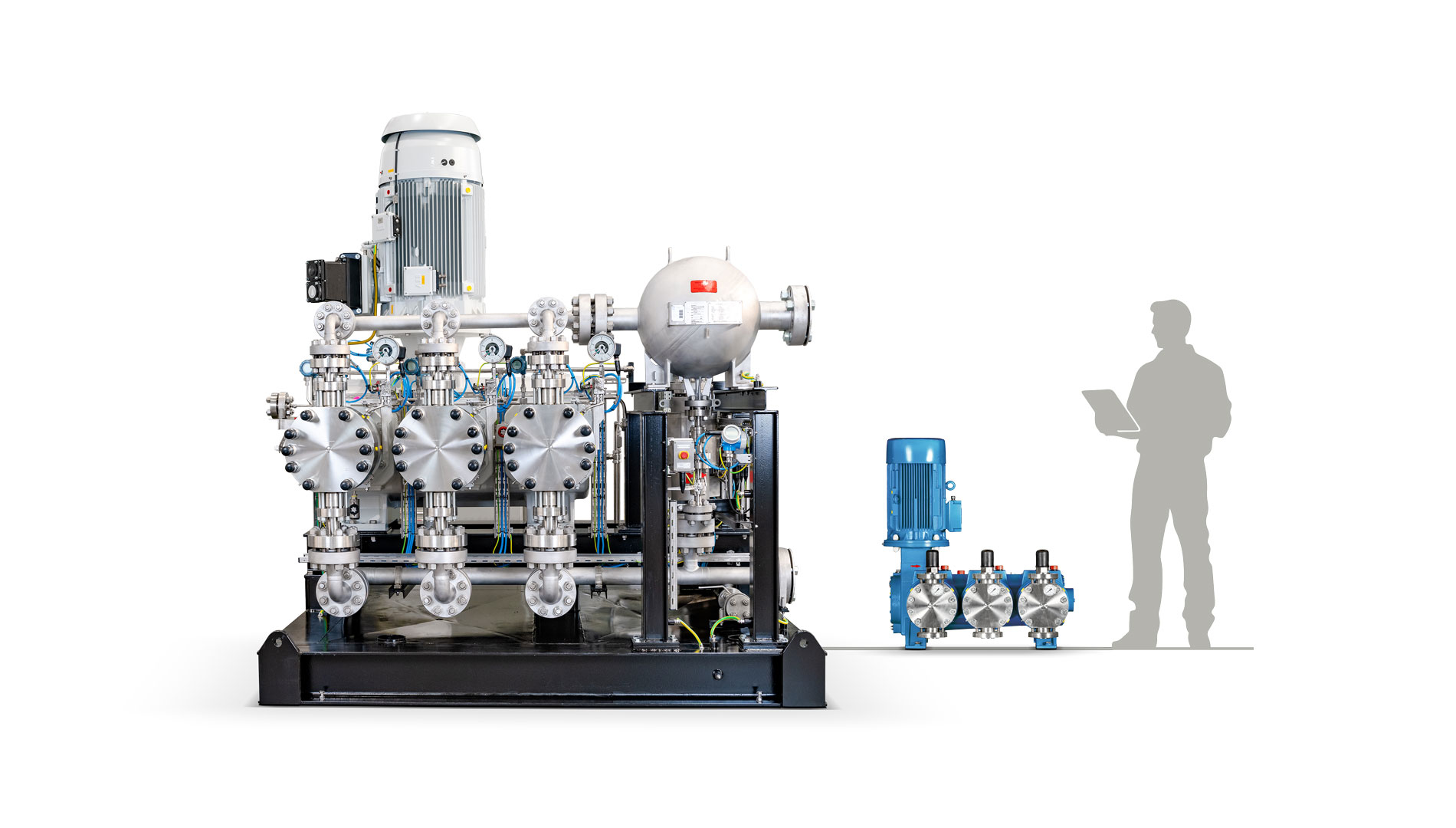

- 30 % space savings
- High efficiency: 80-90 %
- Hydraulic power: 10 kW
- Stroke frequency: up to 350 spm
- Robust monoblock design: long lifespan
- 3-headed construction: low-pulsation
- Few wearing parts: easy maintenance
- Hermetically tight: no emission to the outside and no contamination of the fluid
- Dry-run safe: Pump is not damaged if the fluid supply is interrupted
- Largest control range: maximum flexibility for the process
Example:
"In a fuel gas supply system on a ship, in this example a Very Large Gas Carrier (VLGC) with a cargo volume of approx. 90,000 m³, the energy costs would be reduced by around 20,000 to 30,000 euros per year compared to other pump technology with significantly lower efficiency."
Application possibilities:
- Safe injection of alternative marine fuels in fuel gas supply systems on ships
- Fuel injection in decentralized power supply systems
- Injection of chemicals
- Spray drying
- CO2 extraction
- Gelatine, butter or margarine production
- Homogenization
- …and all other applications with space restrictions
